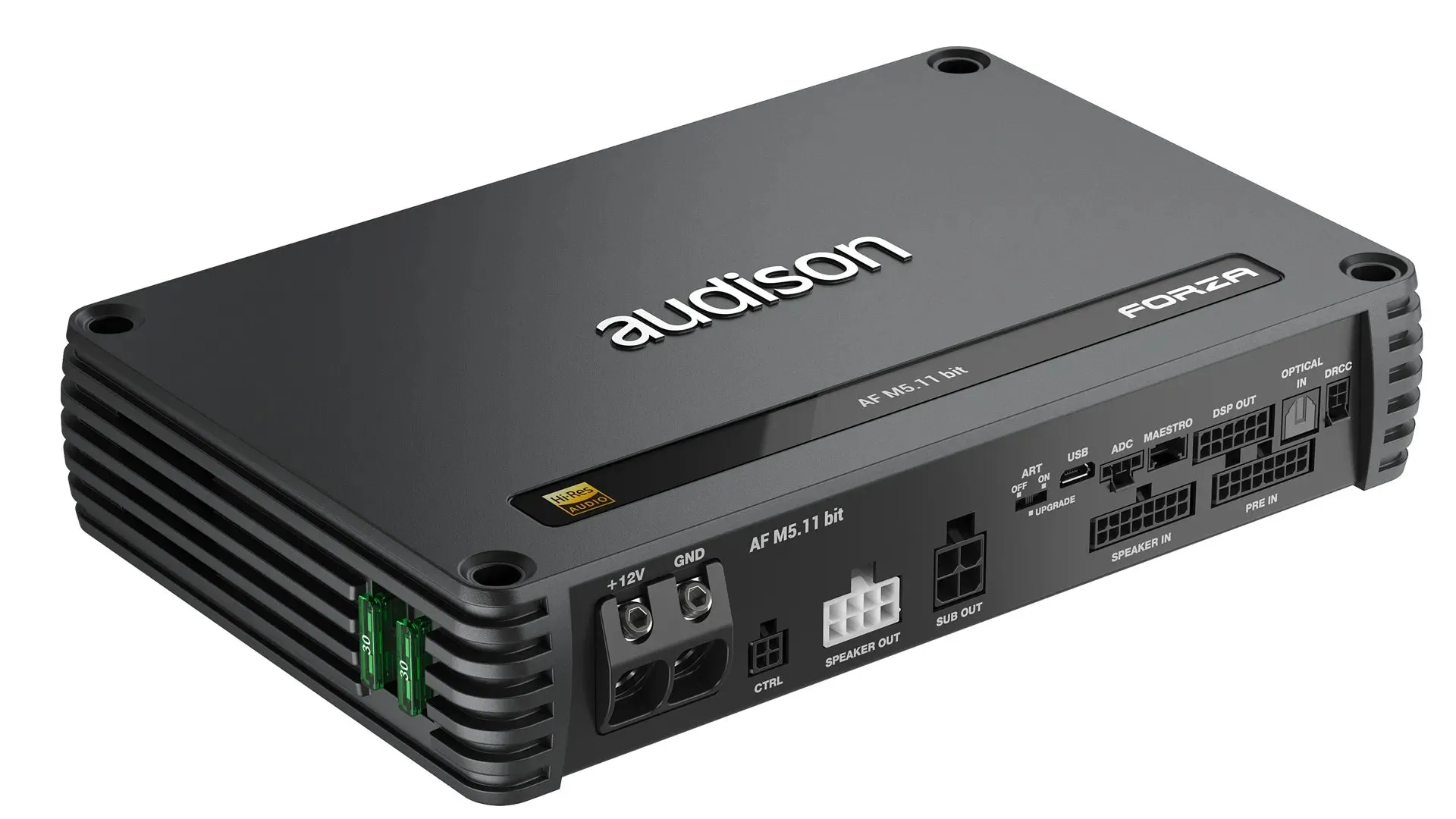

AF M5.11 bitDSP Amplifier | 1200 W | 11 CH DSP 4 x 150 W @ 2 ohm 1 x 600 W @ 2 ohm | D-class Fully Bridgeable
AF M5.11 bit boasts five high-fidelity amplified channels 100W x 4 400W @4Ω*, 150WP x 4 600W @2Ω* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification. Bridging channel pairs results in 200W x 2 400W @4Ω*, guaranteeing flexible and powerful performance. Support for the Audison Absolute Volume function guarantees maximum bit depth, even with wireless connections! Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.
AMPLIFIER TECH DAT
AMPLIFIER STAGE
| Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power | 0.02% |
| Bandwidth @ -1.5 dB | 10 Hz ÷ 42 kHz |
| Damping factor @ 1 kHz, 4Ω, 2 VRMS | 100 kHz , 4Ω, 2 VRMS SUB Channel): 140 | 1 kHz , 4Ω, 2 VRMS: 140 |
| S/N ratio (A weighted @ 1 V Input) Master Input | 98 dBA |
| S/N ratio (A weighted @ 1 V Input) Optical Input | 105 |
| Total Power RMS | 1200 W |
| Minimum load impedance | 2Ω |
| Output Continuous Power (RMS) @14.4 VDC, 1% THD | 5 Ch @ 4Ω: 100 W x 4 400 W x 1 5 Ch @ 2Ω: 150 W x 4 600 W x 1 3 Ch (Bridge 1/2; 3/4) @ 4Ω: 300 W x 2 400 W x 1 3 Ch (Bridge 1/2; 3/4) @ 4Ω / 2Ω: 300 W x 2 600 W x 1 |
| Adjustable Crossover | Yes |
CEA SPECIFICATIONS
| Output power @ 4Ω, 1% THD N, 14.4 V | 85 W x 4 340 W x 1 |
| SN ratio (ref. 1W output) | 78 dB |
INPUTS / OUTPUTS
| Pre-In Inputs | 0.6 ÷ 6 VRMS (15 kΩ Imp.) |
| Digital Input | Yes |
| Pre Outputs | 6 |
| Hi Level Inputs | 8 |
| Low Level Inputs | 8 |
| Speaker-In Inputs | 2.2 ÷ 22 VRMS (5 Ω Imp.) |
| Digital IN | 1 x Optical S/PDIF; Max 192 kHz / 24 bit 1 x Optical/Coaxial S/PDIF with optional F2O card |
| Sub Out (RCA Pre Out) | 5V RMS |
DIGITAL SIGNAL PROCESSOR
| Audio DSP Converter | Analog Devices ADAU1467 automotive qualified audio processor. Processing @ 96 kHz.Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A converters (24 bit/192 kHz) providing very high level performance |
| Filter mode and slope | Linkwitz-Riley @ 12/24/36/48 dB/Oct. Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct. Bessel @ 6/12/18/24/30/36/42/48 dB/Oct. Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct. QLP @ 6 dB/Oct. |
| Crossover frequency | 20 Hz ÷ 20 kHz |
| Phase control | 0° / 180°, All-Pass filters |
| Analog Input Equalizer (20 ÷ 20k Hz) | 12 Biquad Delay |
| Output Equalizer | Parametric/Graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz |
| Time Alignment Distance | 0 ÷ 510 cm / 0 ÷ 200.8 inches |
| Time Alignment Delay | 0 ÷ 15 ms |
| Input Output Real Time Audio Monitor | RTA |
CONTROL CONNECTIONS
| DRC Port | Input for DRC AC remote control (Optional) |
| ADC Port | Manage other Audison devices that support this standard |
| 1 Wire | Customizable functions ( 12 V activated) |
| 2 Wire | Customizable functions ( 12 V activated) |
GENERAL REQUIREMENTS
| PC connections | Micro USB 1.1 / 2.0 / 3.0 Compatible |
| Software/PC requirements | Windows 10, Windows 11 (min. res. 1024 x 768) |
| Ambient operating temperature range | 0 °C to 55 °C (32 °F to 131 °F) |
| Size | 240 x 47 x 156 / 9.44 x 1.85 x 6.14 |
| Weight | 2.04 kg |
