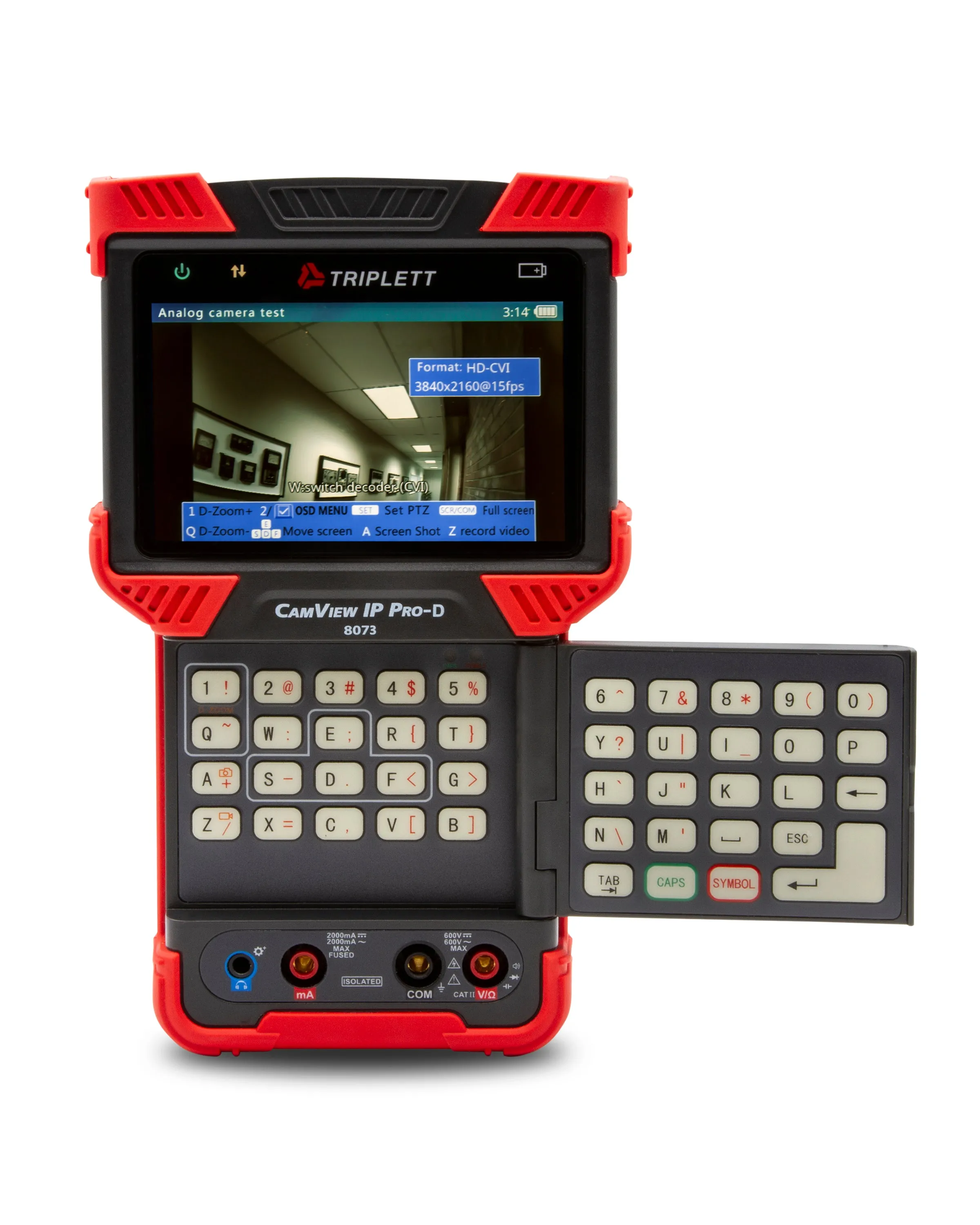

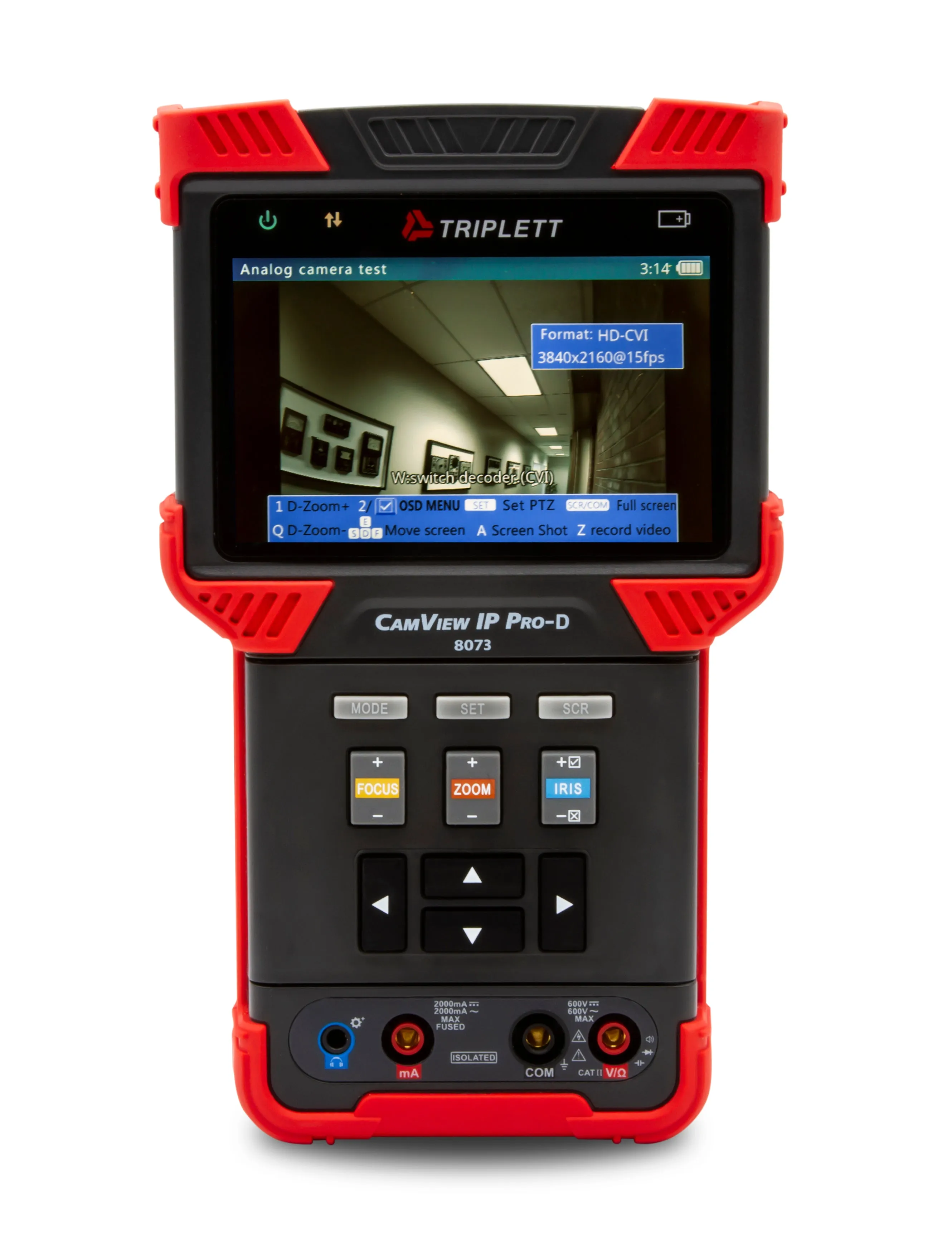

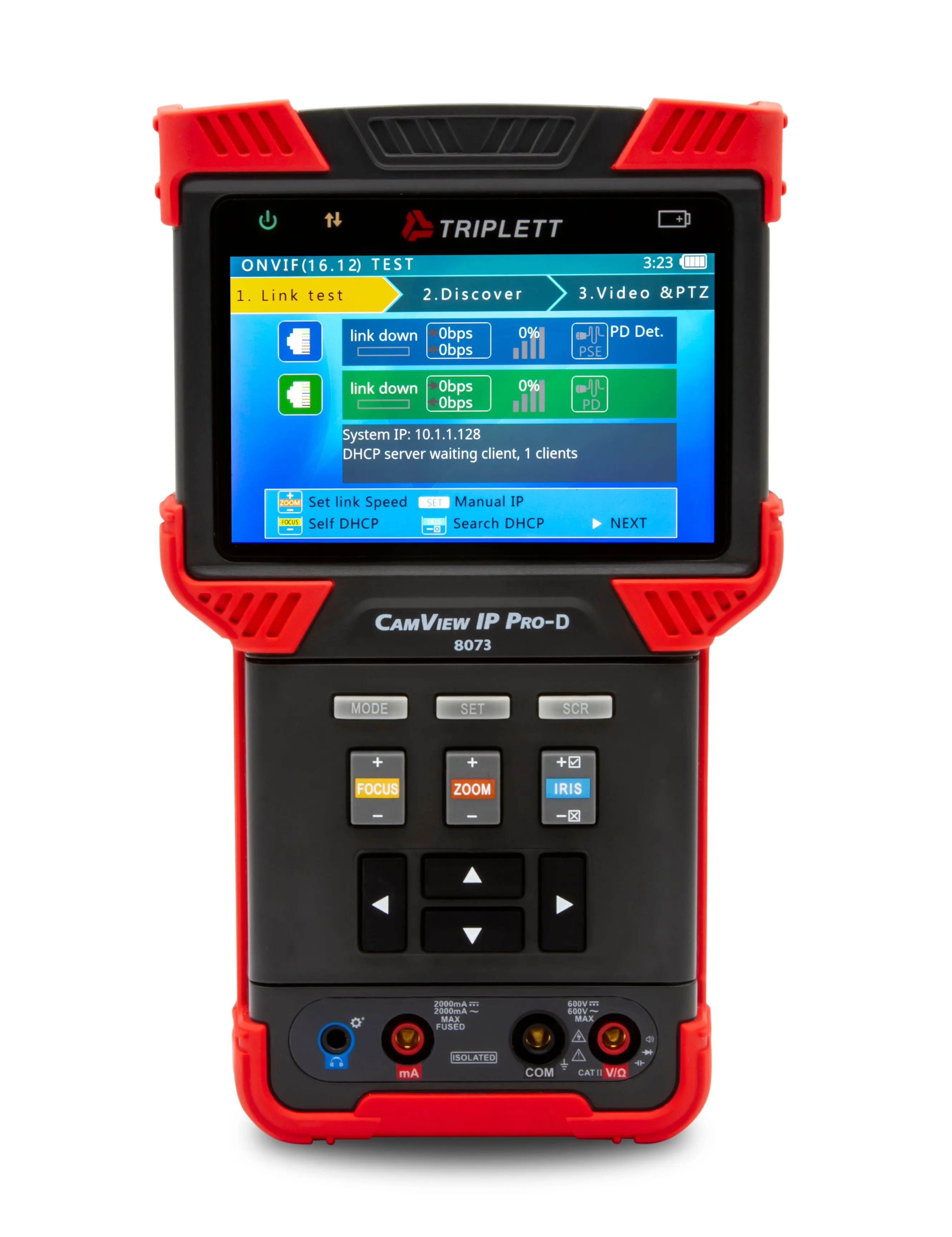

The CamView IP Pro, Pro , and Pro-D are designed to facilitate the installation and maintenance of surveillance video equipment. The Tester works with both Standard Definition analog NTSC/PAL camera systems, High Definition Analog, and ONVIF conformant IP (Ethernet) camera systems.
DESCRIPTION
The CamView IP Pro, Pro , and Pro-D are designed to facilitate the installation and maintenance of surveillance video equipment. The Tester works with both Standard Definition analog NTSC/PAL camera systems, High Definition Analog, and ONVIF conformant IP (Ethernet) camera systems. Also, the testers provide an RS485 port for PTZ control of analog PTZ cameras and can provide POE for operating IP cameras, or 12VDC (not to exceed 2A) to power analog cameras. The IP Camera Tester allows you to perform Ethernet and network tests, capture video (snapshots and video recording), playback video, generate video test patterns for monitor checking and perform analog camera testing. They also allow you to check microphone/audio sources and even provide a bright flashlight function. Both recorded images and video can be transferred to PCs or other devices via the USB port connection.
CATEGORY:
Features
- IP (H.265) and Analog (AHD 2.0, HD-TVI 3.0, HD-CVI 3.0, and NTSC/PAL) security camera tester
- Provides an RS485 port for PTZ control of analog PTZ cameras
- POE for IP cameras or 12VDC to analog cameras
- Ethernet and network tests; Capture snapshots and video recordings; Generate video test patterns for monitor checking
Product Overview
Specifications
| Part Number | ||||
| ENCODING | ||||
| SD Analog | x | x | x | x |
| AHD 2.0 | x | x | x | |
| AHD 3.0 | x | |||
| HD-CVI 2.0 | x | x | ||
| HD-CVI 3.0 | x | |||
| HD-TVI 2.0 | x | x | ||
| HD-TVI 3.0 | x | |||
| IP (ONVIF only) | x | x | x | x |
| H.264 | x | x | x | x |
| H.265 | x | |||
| FEATURES | ||||
| DHCP Server | x | x | x | x |
| MJPEG | x | x | x | x |
| 12VDC Output | x | x | x | x |
| POE Output | 15W | 15W | 15W | 15W |
| TDR Testing | Ethernet only | Ethernet only | Ethernet only | Ethernet only |
| Digital Multimeter | x | |||
| RS485 PTZ | x | x | x | x |
| Digital Zoom | x | x | x | x |
| Data Monitor | x | x | x | x |
| Analog Video Generator | x | x | x | x |
| HD Video Generator | up to 1080P 30fps | |||
| Record Snapshot | x | x | x | x |
| Record Video | x | x | x | x |
| Camera Report | IP only | IP only | IP only | IP only |
| File Export | x | x | x | x |
| Keyboard | Full QWERTY | Full QWERTY | Full QWERTY | Full QWERTY |
| Flashlight | x | x | x | x |
| PHYSICAL FEATURES | ||||
| Screen | Backlit 4" 16.7M color TFT | Backlit 4" 16.7M color TFT | Backlit 4" 16.7M color TFT | Backlit 4" 16.7M color TFT |
| Resolution | 800 x 480 | 800 x 480 | 800 x 480 | 800 x 480 |
| Inputs | ||||

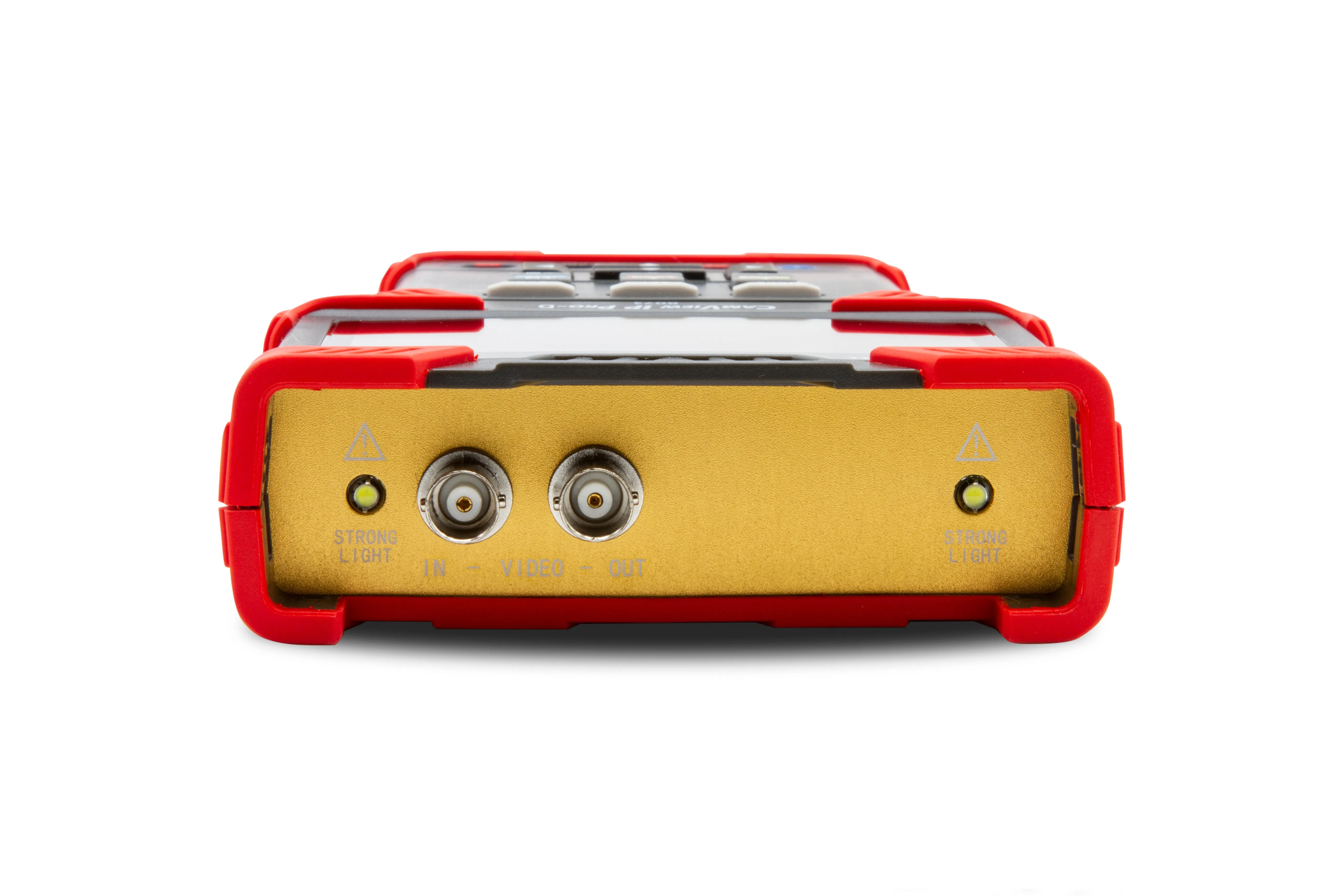

| BNC | x | x | x | x |
| RJ45 | x | x | x | x |
| Outputs | ||||
| BNC | x | x | x | x |
| RJ45 | x | x | x | x |
| USB | Mini | Mini | Mini | Mini |
| Dimensions | 7.5 x 4.4 x 1.5" (190 x 113 37mm) | 7.5 x 4.4 x 1.5" (190 x 113 37mm) | 7.5 x 4.4 x 1.5" (190 x 113 37mm) | 7.5 x 4.4 x 1.5" (190 x 113 37mm) |
| Weight | 3.5lbs (1.6kg) | 3.5lbs (1.6kg) | 3.5lbs (1.6kg) | 3.5lbs (1.6kg) |

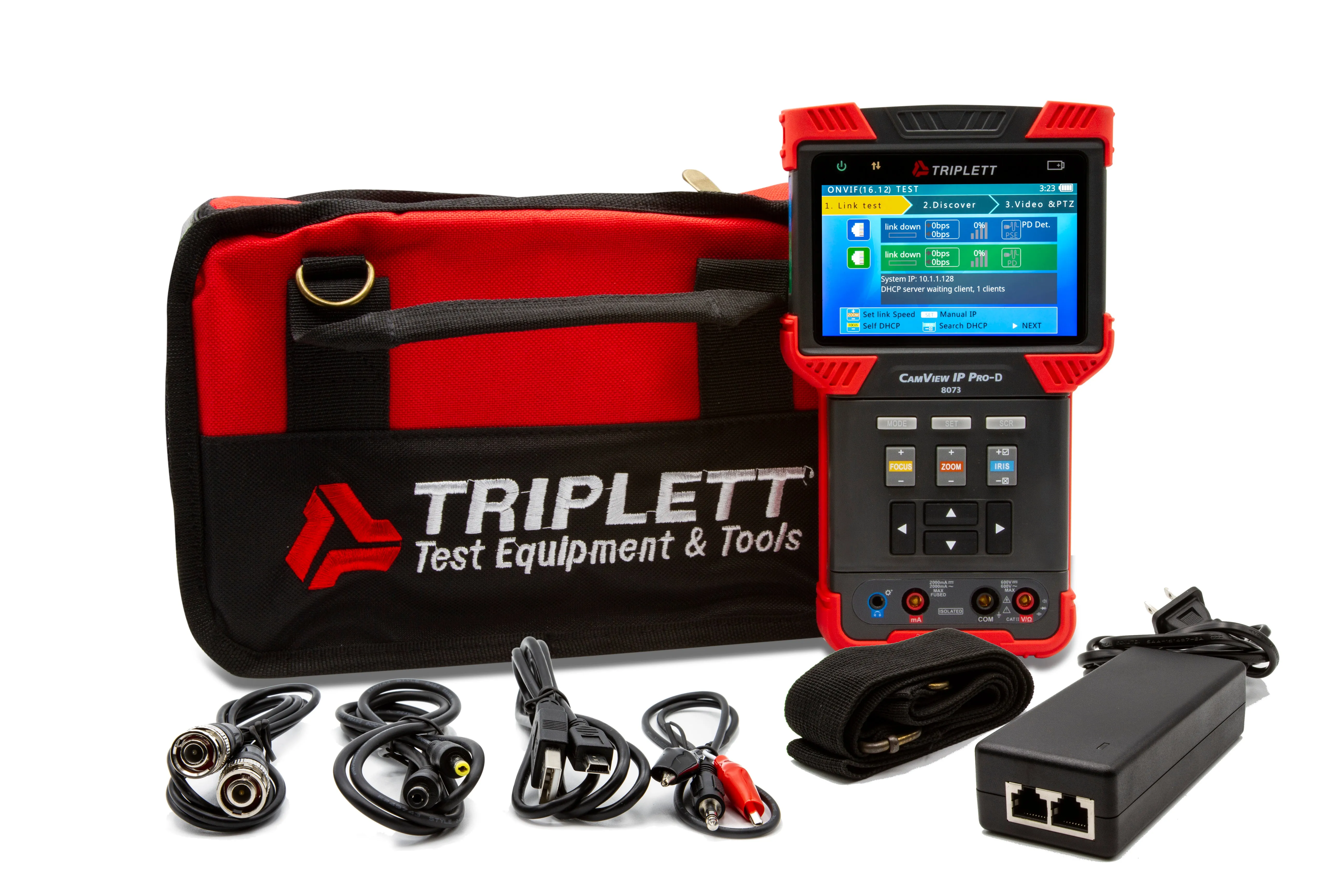

Includes
- Lanyard

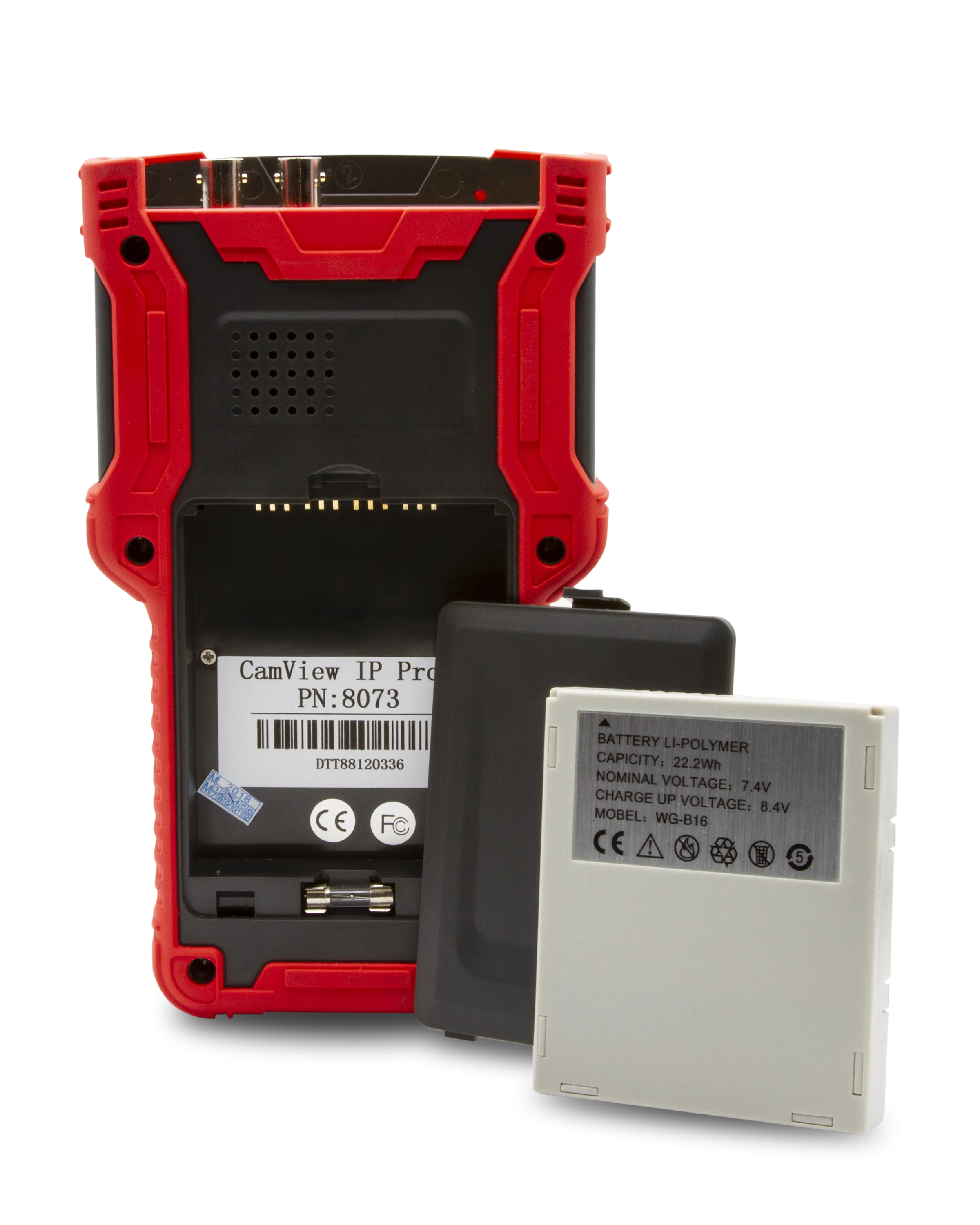

- Rechargeable Battery

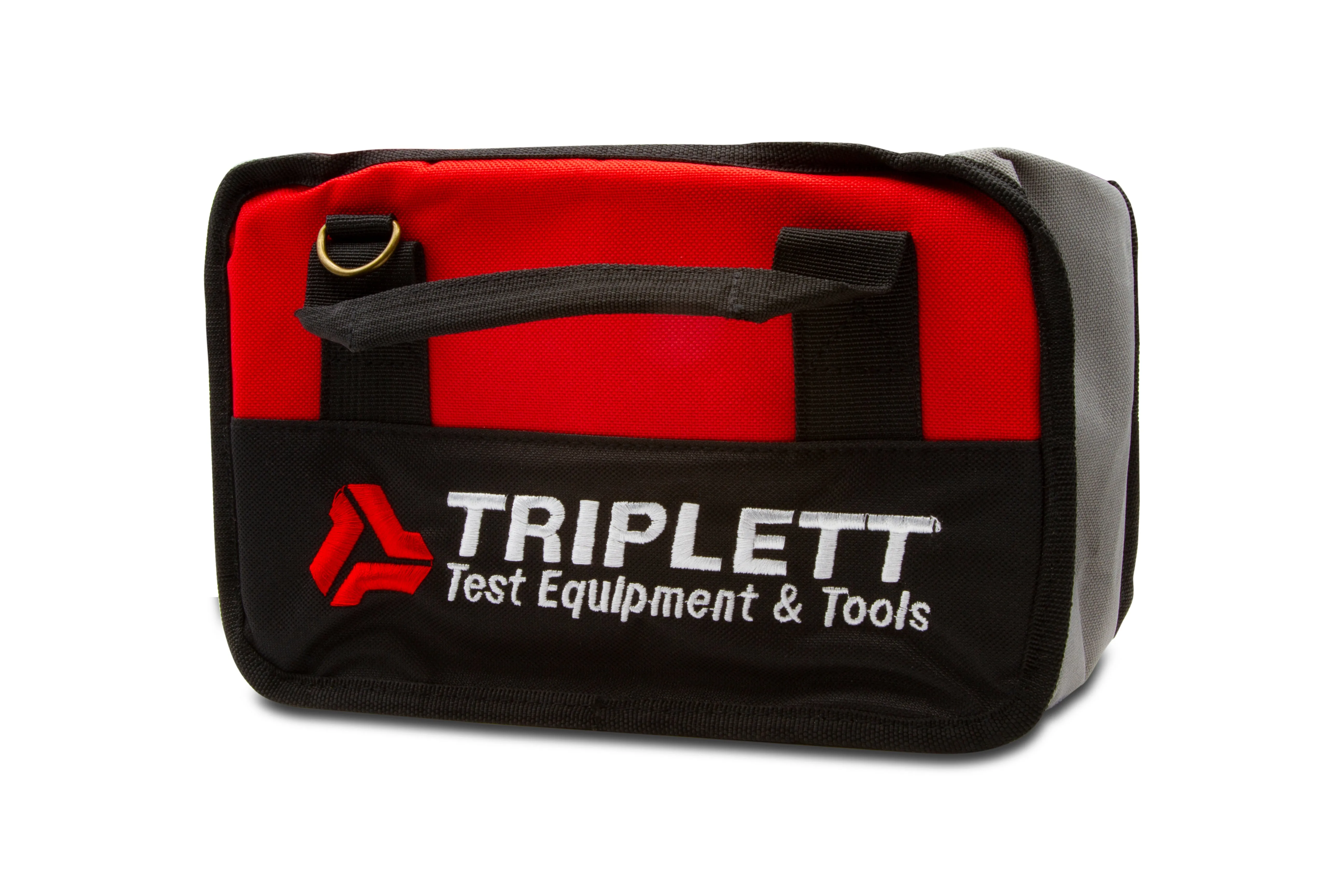

- Tool Bag with Shoulder Strap
- POE Power Injector, Network Cable
- BNC Cable
- RS485 Cable
- 12V Power Output Cable
- Audio Cable
- USB Cable
Downloads
VIDEO
FAQs
-
Q. I am getting wrong password and username message
A. User name and password information is not an error of the tester. This information is the camera only. Our testers do not have any passwords or user information requirements. If you are having trouble with passwords you need to contact the camera manufacturer or refer to their manual for default user name password information or details on any special set up specifications they may have for initializing their cameras. -
Q. How do I setup an AXIS Camera to allow ONVIF Users
A. Download our Document
and Document -
Q. Is there a software upgrade that will provide all analog formats to my device?
A. Updates for the unit are performed by connecting the unit to a network via the rj45 port, going into settings, scrolling down to “System Upgrade” and hitting the right arrow. The unit will automatically look for any new updates available. This process id detailed in the user manual section 4.7.3.
When viewing analog cameras the format and pattern can be changed in the “Analog video generator” section of the main menu.
