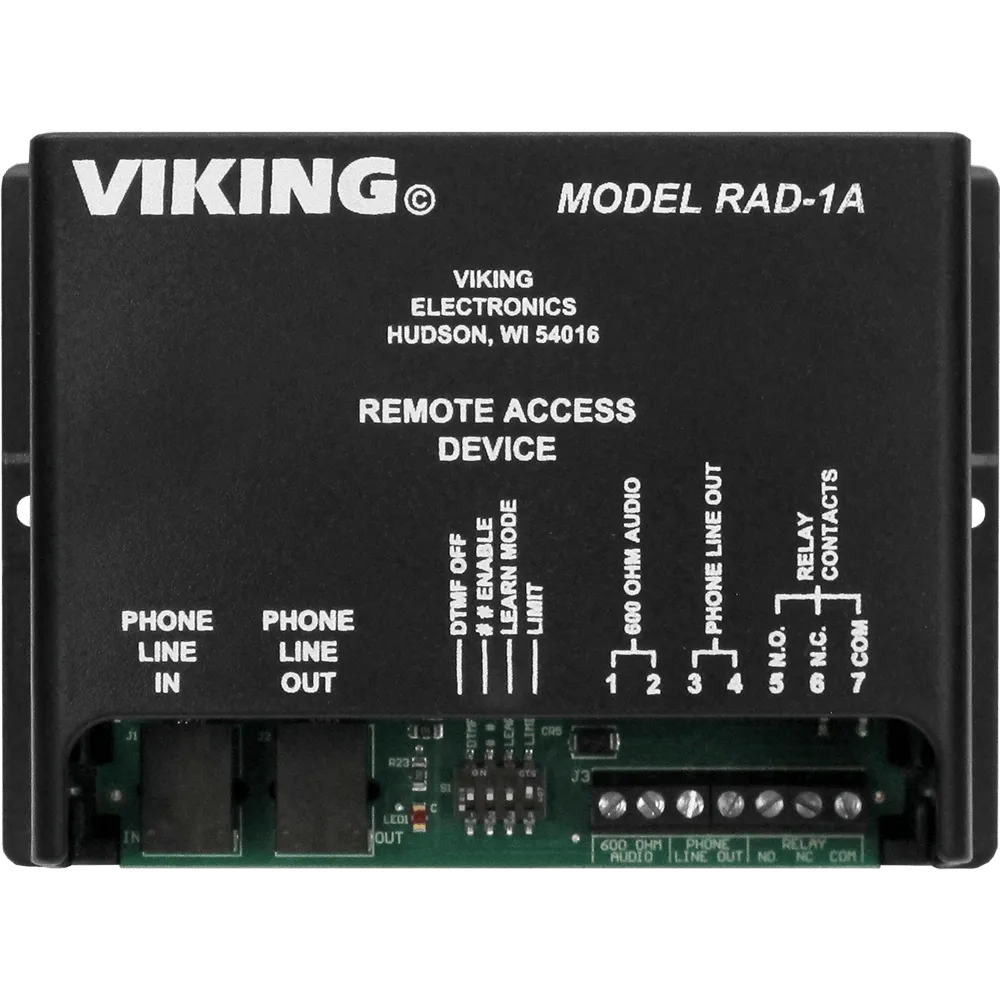

Viking RAD-1A Features:

• Status LED turns on when the unit is active and turns off to indicate the presence of audio
• Programmable 6 digit security code
• Programmable 6 digit access code
• Separate 600 ohm audio and telephone line outputs
• Disconnects on CPC, call time out, silence time out, busy or by dialing #7
• Programmable 2 hour call timer
• Programmable 1-99 second silence timer
• Alternate screw terminal connection for phone line out
• Provides a 500ms hookswitch flash to access other features
• Provides a 2 second disconnect
• Connects phone line to the 600 ohm input/ output of one-way paging amplifiers, digital announcers and other audio programs
• Auxiliary contacts available for systems that need a dry contact closure (activate whenever the unit’s output is active)
• Non-volatile memory (no batteries required)
• Manufacturer Warranty: 2 Year Limited Warranty

Applications

Remote Access To:

• Paging systems (Viking’s , , , )
• Digital announcers
• Advertisements, radio or church programs
• Audio monitoring for security purposes
